Configuration Properties

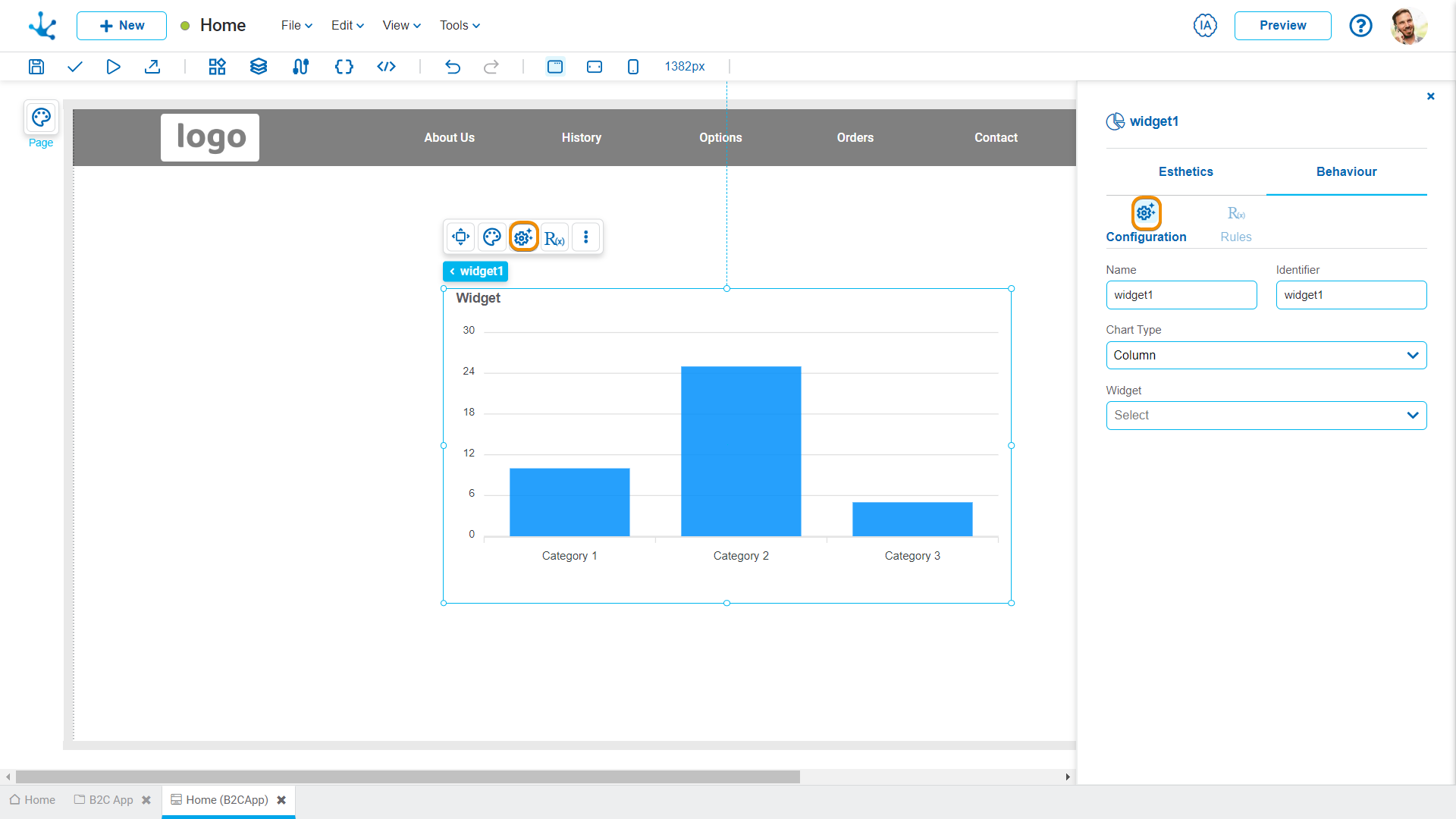

The configuration properties panel of an element opens when clicking the icon of its context menu.
Name
Name used to reference the element during modeling.
Identifier
Uniquely identifies the element. It is used in the Javascript SDK.
Tooltip
Pop-up message that appears when hovering over an element, providing additional information.
Text
Content of the message being displayed.
Direction
Position of the message in relation to the element (top, bottom, left, or right).
Chart Type
The types of charts for the modeled widgets are displayed in the environment.
Widget
The widgets modeled in the environment are displayed, according to the type of chart defined in the previous property.
